本文介绍了一个基于深度学习的跳一跳物理外挂制作过程。先准备PaddleDetection，自制199张图片数据集并标注，转成COCO格式。用PPYOLO_Tiny训练模型，经验证、导出后部署。电脑将坐标距离转成按压时间，通过上位机代码向51单片机发指令，单片机按指令操作，还提供了相关代码。

前言

?单片机原理课的作业做了一个OpenCV+汇编51的没啥用的跳一跳物理外挂，觉得可以换成用深度学习进行目标检测，于是就来试一试

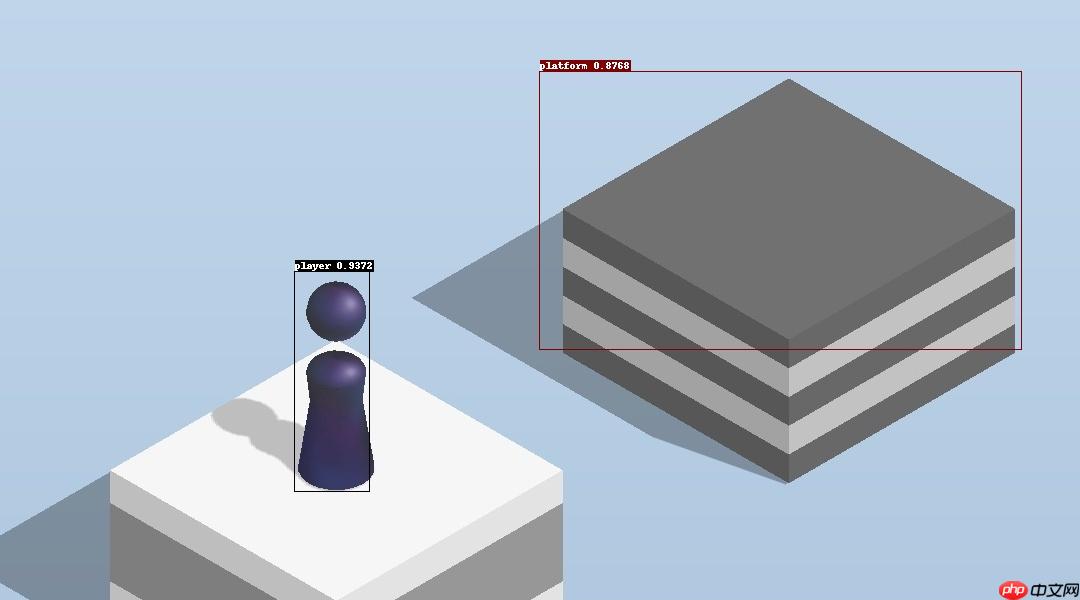

效果图：

效果动图：

一、准备工作

1. 准备PaddleDetection

#安装PaddleDetection!git clone https://gitee.com/paddlepaddle/PaddleDetection.git work/PaddleDetection登录后复制In [?]

#安装前置!pip install --upgrade -r work/PaddleDetection/requirements.txt -i https://mirror.baidu.com/pypi/simple登录后复制

2. 自制数据集

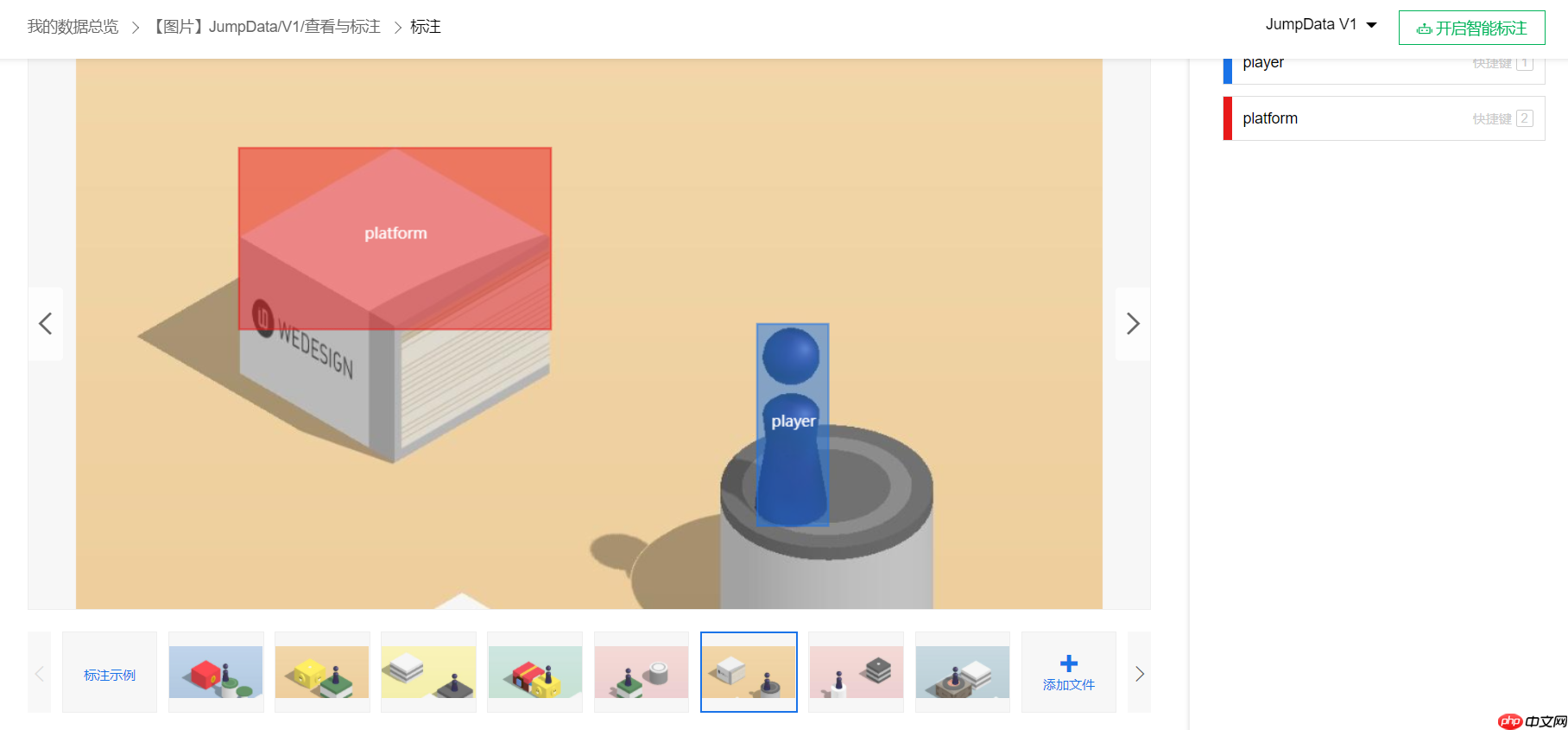

?采集199张图片并剪裁（差一张强迫症狂喜（狗头）），使用EasyData平台进行数据标注（他那个智能标注还挺好用的，标完直接传到AIstudio上）

#解压数据集!unzip -q 'data/data109105/JumpData V1.zip' -d data/!mkdir data/JumpData!mkdir data/JumpData/Image!mkdir data/JumpData/Label!mkdir data/JumpData/Anno!mv data/DatasetId_230079_1631965091/*.json data/JumpData/Label!mv data/DatasetId_230079_1631965091/*.jpg data/JumpData/Image!rm -rf data/DatasetId_230079_1631965091!rm -rf data/JumpData/Label/screen2.json登录后复制

?转成COCO格式的标注文件（这地方之前搞错了，训练半天精度上不去，后面才发现是我标注文件做错了）

#整理Json文件import osimport jsonclasslist = [{'supercategory': 'none', 'id': 1, 'name': 'player'}, {'supercategory': 'none', 'id': 2, 'name': 'platform'}]#trainidxcount = 0imgcountidx = 0JumpData_train = {}imagelist_train = []labellist_train = []for idx, imagename in enumerate(os.listdir('data/JumpData/Image')[0:179]): imagelist_train.append({'file_name': imagename, 'height': 600, 'width': 1080, 'id': idx}) jsonname = os.path.splitext(imagename)[0] + '.json' with open(os.path.join('data/JumpData/Label', jsonname)) as f: data = json.load(f) for label in data['labels']: x1 = label['x1'] y1 = label['y1'] w = label['x2'] - label['x1'] h = label['y2'] - label['y1'] area = (w * h) if label['name'] == 'platform': classidx = 2 else: classidx = 1 idxcount += 1 labellist_train.append({'area': area, 'iscrowd': 0, 'bbox': [x1, y1, w, h], 'category_id': classidx, 'ignore': 0, 'segmentation': [], 'image_id': imgcountidx, 'id': idxcount}) imgcountidx += 1#validxcount = 0imgcountidx = 0JumpData_val = {}imagelist_val = []labellist_val = []for idx, imagename in enumerate(os.listdir('data/JumpData/Image')[179:199]): imagelist_val.append({'file_name': imagename, 'height': 600, 'width': 1080, 'id': idx}) jsonname = os.path.splitext(imagename)[0] + '.json' with open(os.path.join('data/JumpData/Label', jsonname)) as f: data = json.load(f) for label in data['labels']: x1 = label['x1'] y1 = label['y1'] w = label['x2'] - label['x1'] h = label['y2'] - label['y1'] area = (w * h) if label['name'] == 'platform': classidx = 2 else: classidx = 1 idxcount += 1 labellist_val.append({'area': area, 'iscrowd': 0, 'bbox': [x1, y1, w, h], 'category_id': classidx, 'ignore': 0, 'segmentation': [], 'image_id': imgcountidx, 'id': idxcount}) imgcountidx += 1JumpData_train['images'] = imagelist_trainJumpData_train['type'] = 'instances'JumpData_train['annotations'] = labellist_trainJumpData_train['categories'] = classlistJumpData_val['images'] = imagelist_valJumpData_val['type'] = 'instances'JumpData_val['annotations'] = labellist_valJumpData_val['categories'] = classlistjson.dump(JumpData_train, open('data/JumpData/Anno/JumpData_train.json', 'w'), indent=4)json.dump(JumpData_val, open('data/JumpData/Anno/JumpData_val.json', 'w'), indent=4)登录后复制

二、开始训练

?使用PPYOLO_Tiny进行训练，配置文件请见work/Config/Yml文件夹

#模型训练!export CUDA_VISIBLE_DEVICES=0!python work/PaddleDetection/tools/train.py -c work/Config/Yml/PPYOLO_TINY_JUMP.yml --eval登录后复制

三、效果验证

#模型预测!python work/PaddleDetection/tools/infer.py -c work/Config/Yml/PPYOLO_TINY_JUMP.yml -o weights=work/output/PPYOLO_TINY_JUMP/best_model.pdparams --infer_img=work/Config/screen.png --draw_threshold=0.5 --output_dir=work/imgresult登录后复制

四、模型导出

#导出模型!python work/PaddleDetection/tools/export_model.py -c work/Config/Yml/PPYOLO_TINY_JUMP.yml -o weights=work/output/PPYOLO_TINY_JUMP/best_model.pdparams --output_dir=work/inference_model登录后复制In [?]

#模型预测(导出后)!python work/PaddleDetection/deploy/python/infer.py --model_dir=work/inference_model/PPYOLO_TINY_JUMP --image_file=work/Config/screen.png --output_dir=work/inferenceresult登录后复制

五、模型部署

?电脑根据模型得出的结果将坐标距离转化为屏幕按压时间，然后对51单片机发出指令，下面给出上位机代码以及51单片机的汇编代码，完整上位机包已在work/UARTServo.zip给出，汇编代码直接导进Keil中编译成HEX文件烧录至单片机内即可

1. 上位机代码

import osimport cv2import timeimport serialimport paddlefrom Predict import PredictConfig, Detector, predict_imagedef getscreen(): os.system(”adb shell rm /sdcard/screen.png“) os.system(”del C:UsersBlangDesktopscreen.png“) os.system(”adb shell screencap -p /sdcard/screen.png“) os.system(”adb pull /sdcard/screen.png C:/Users/Blang/Desktop“) img = cv2.imread('C:/Users/Blang/Desktop/screen.png') img = img[850:1450, :] return img def getposition(image_file): paddle.enable_static() threshold = 0.5 model_dir = 'inference_model/PPYOLO_TINY_JUMP' pred_config = PredictConfig(model_dir) detector = Detector(pred_config, model_dir) results = predict_image(detector, image_file, threshold) return results def calculate(results): player_position = [] platform_position = [] for result in results: classid = result[0] xmin = result[2] ymin = result[3] xmax = result[4] ymax = result[5] w = xmax - xmin h = ymax - ymin if classid == 0: player_x = xmin + w / 2 player_y = ymax player_position.append([player_x, player_y]) else: platform_x = xmin + w / 2 platform_y = ymax platform_position.append([platform_x, platform_y]) for player in player_position: for platform in platform_position: if player[1] < platform[1]: continue else: player_x = player[0] player_y = player[1] platform_x = platform[0] platform_y = platform[1] distance = ((platform_x - player_x)**2 + (platform_y - player_y)**2)**0.5 presstime = distance * 1.5 + 200 presstime = presstime * 0.001 return presstimedef sendcommand(presstime): ser=serial.Serial(”COM5“, 2400, timeout=5) result=ser.write(chr(0x32).encode(”utf-8“)) time.sleep(presstime) result=ser.write(chr(0x31).encode(”utf-8“)) ser.close() time.sleep(1) while True: img = getscreen() results = getposition(img) presstime = calculate(results) sendcommand(presstime)登录后复制

2. 汇编代码

ORG 0000HLJMP MAINORG000BHLJMPTimer0InterruptORG 0023HLJMP UARTInterruptORG 0100HMAIN:LCALLInitAllLCALL InitTimer0LCALL InitUARTLCALLPWMLJMP MAIN/***********************************/InitAll:MOVR7, #50DMOV SP, #60HMOV TMOD, #22H/***********************************/InitTimer0: MOV TH0, #0A4H MOV TL0, #0A4H SETB EA SETB ET0 SETB TR0SETB P3.5SETB P3.6RETPWM:MOV A, #200DSUBB A, R1MOV R2, AMOV A, R1MOV R0, ADELAY:CJNE R0, #00H, $CLR P3.5CLR P3.6MOV A, R2MOV R0, ACJNE R0, #00H, $SETB P3.5SETBP3.6MOV A, R1MOV R0, ADJNZ R7, DELAY RETTimer0Interrupt:DEC R0 RETI/***********************************/InitUART:MOV SCON, #50HMOV TH1, #0F3HMOV TL1, TH1MOV PCON, #00HSETB EASETB ESSETB TR1RETUARTInterrupt:CLR ESPUSH ACCJB RI, Is_ReceiveRETIIs_Receive:CLR RIMOV A, SBUFCJNE A, #31H, NEXT_POSITIONMOV R1, #8D NEXT_POSITION:CJNE A, #32H, GOBACKMOV R1, #20DGOBACK:SETB ESPOP ACCRETI/***********************************/END登录后复制
